Part Number :

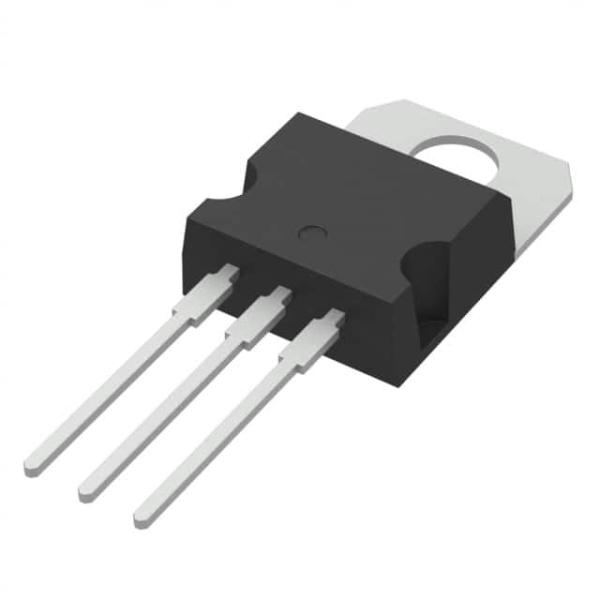

STP80PF55
Manufacturer :
STMicroelectronics
Description :
STP80PF55 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from STMicroelectronics stock available at Rozee
Lifecycle :
New from this manufacturer
Delivery :
DHL、UPS、FedEx、Registered Mail
Payment :
T/T Paypal Visa MoneyGram Western Union
More Information :
STP80PF55 More Information
ECAD :
Request Free CAD Models
Pricing(USD) :
$0.00
Remark :
Manufacturer: STMicroelectronics.
Rozee is one of the Distributors.
Wide range of applications.
Mount :
Through Hole
Height :
9.15 mm
Weight :
4.535924 g
Rise Time :
190 ns
Resistance :
18 mΩ
Current Rating :
-80 A
Input Capacitance :
5.5 nF
Threshold Voltage :
-3 V
Turn-On Delay Time :
35 ns
Voltage Rating (DC) :
-55 V
Max Power Dissipation :
300 W
Min Operating Temperature :
-55 °C
Gate to Source Voltage (Vgs) :
16 V
Drain to Source Voltage (Vdss) :
55 V
Products Category :
Discrete Semiconductor - Transistors - FETs, MOSFETs - Single
Qty :
770 In Stock
Applications :
Appliances
Pro audio, video & signage
Tablets
Width :
4.6 mm
Length :
10.4 mm
Fall Time :
80 ns
Rds On Max :
18 mΩ
Case/Package :
TO-220
Number of Pins :
3
Power Dissipation :
300 W
Number of Elements :
1
Turn-Off Delay Time :
165 ns
Element Configuration :
Single
Max Operating Temperature :
175 °C
Drain to Source Resistance :
18 mΩ
Continuous Drain Current (ID) :
80 A
Drain to Source Breakdown Voltage :
-55 V
