Part Number :

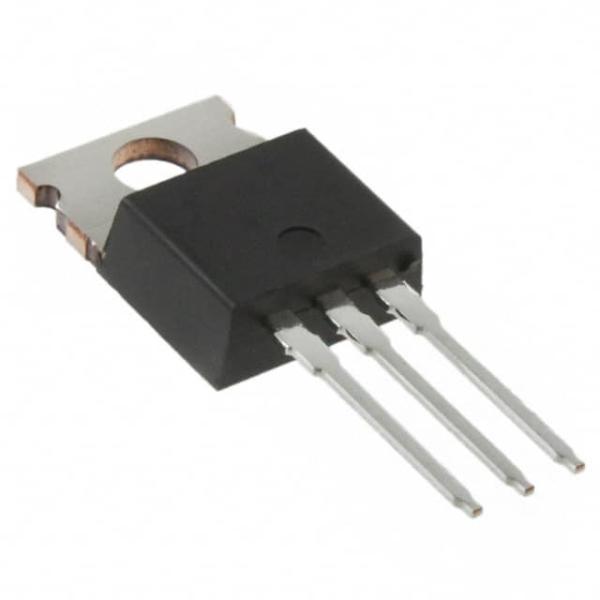

IRF9Z14
Manufacturer :
Vishay / Siliconix
Description :
IRF9Z14 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Vishay / Siliconix stock available at Rozee
Lifecycle :
New from this manufacturer
Delivery :
DHL、UPS、FedEx、Registered Mail
Payment :
T/T Paypal Visa MoneyGram Western Union
More Information :
IRF9Z14 More Information
ECAD :
Request Free CAD Models
Pricing(USD) :
$0.00
Remark :
Manufacturer: Vishay / Siliconix.
Rozee is one of the Distributors.
Wide range of applications.
Mount :
Through Hole
Height :
9.01 mm
Weight :
6.000006 g
Packaging :
Bulk
Rds On Max :
500 mΩ
Case/Package :
TO-220-3
Number of Pins :
3
Power Dissipation :
43 W
Number of Elements :
1
Turn-Off Delay Time :
10 ns
Element Configuration :
Single
Max Operating Temperature :
175 °C
Drain to Source Resistance :
500 mΩ
Continuous Drain Current (ID) :
6.7 A
Drain to Source Breakdown Voltage :
-60 V
Products Category :
Discrete Semiconductor - Transistors - FETs, MOSFETs - Single
Qty :
806 In Stock
Applications :
Datacom module
Grid infrastructure
Gaming
Width :
4.7 mm
Length :
10.41 mm
Fall Time :
31 ns
Rise Time :
63 ns
Nominal Vgs :
-4 V
Current Rating :
-6.7 A
Input Capacitance :
270 pF
Number of Channels :
1
Turn-On Delay Time :
11 ns
Voltage Rating (DC) :
-60 V
Max Power Dissipation :
43 W
Min Operating Temperature :
-55 °C
Gate to Source Voltage (Vgs) :
20 V
Drain to Source Voltage (Vdss) :
60 V
